| Place of Origin: | China |
|---|---|
| Brand Name: | GT |
| Model Number: | exhaust fan |
| Minimum Order Quantity: | 5 sets |
| Price: | $ 100 -$125/ set |
| Packaging Details: | standard packing |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sets/ per month |
| Product Name: | Exhaust Fan Cooling Fan | Size: | 1100x1100mm,1380x1380mm, 1530x1530mm |
|---|---|---|---|
| Fan Frame: | Galvanized Steel Sheets | Blade: | 6 Pcs |
| Rated Voltage: | 220v/380V | Application: | Greenhouse Cooling System |
| Usage: | Agriculture Cooling System | Origin: | Shandong |
| Highlight: | 1000x1000mm heavy duty exhaust fans,heavy duty exhaust fan 12 inch,heavy duty exhaust fan 24 inch |
||

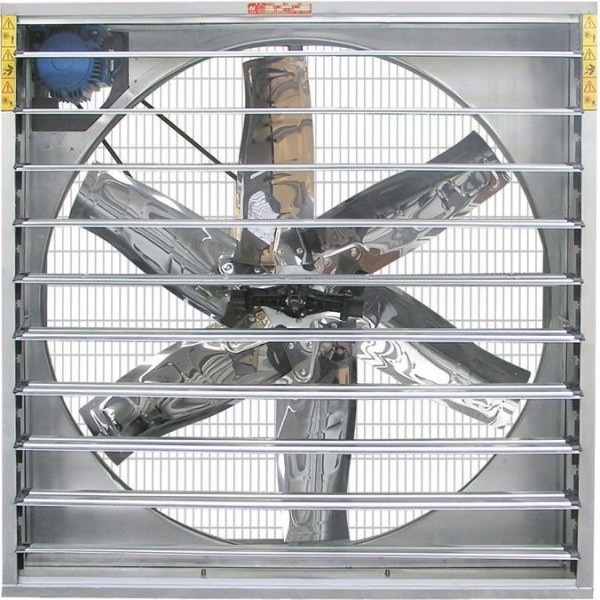

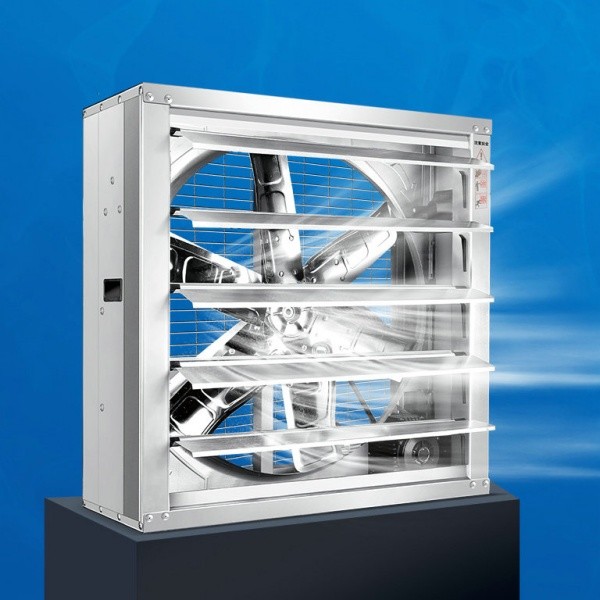

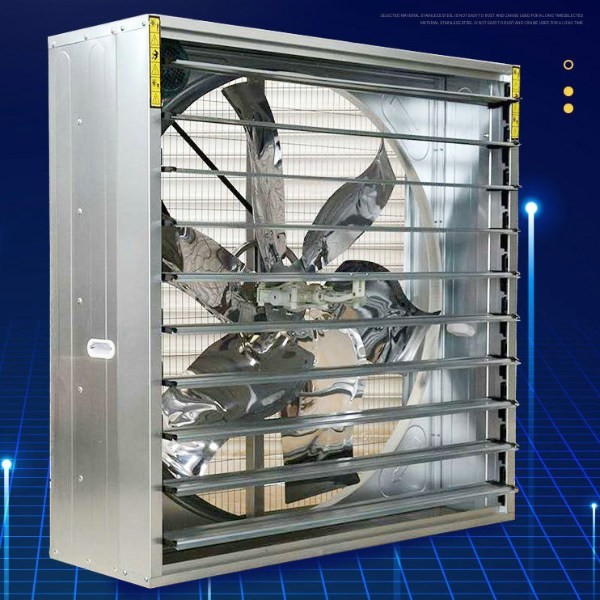

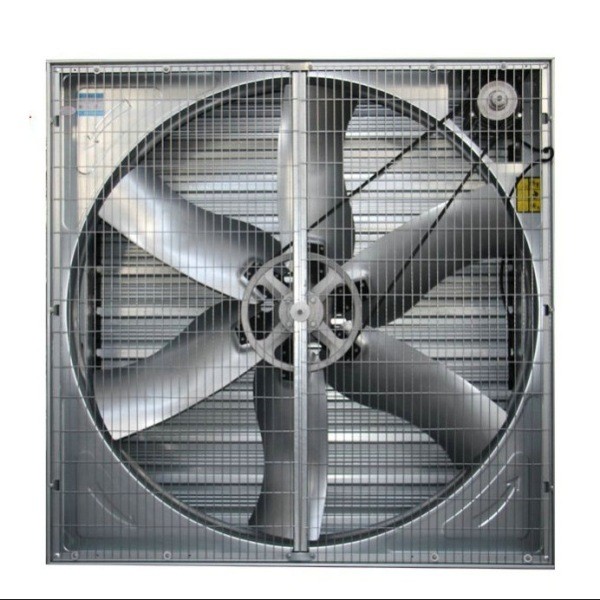

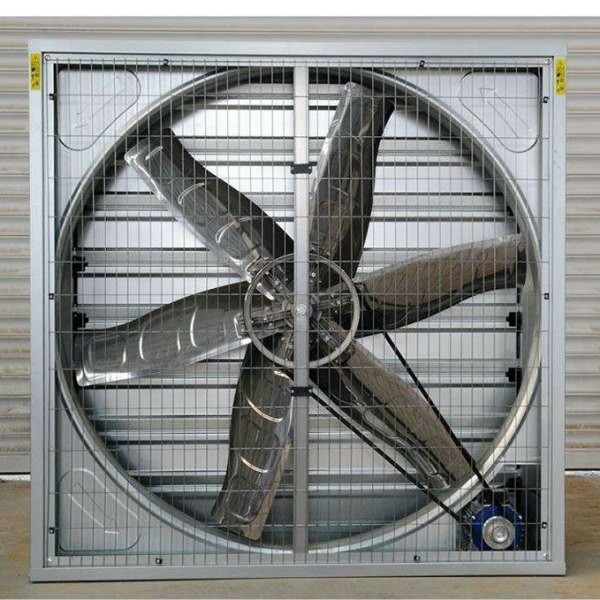

1000x1000mm heavy duty exhaust fans agriculture greenhouse flower roses
Permormance characteristics
Fan frame: made from highly galvanized steel sheets in order to assure highest strength and strong
resistance to corrosion
Blade: 6 pieces stainless steel blades and the fan has all passed the xperiment of homeostasis with
big air volume, without deformation, no breaking, attractive and durable
Belt Pulley: The V type belt pulley is aluminium magnesium alloy injection moulded, light weight,
high stength
Bearing: Imported bearing , high intensity, low noise, long service life.
Technical parameter
| Model |
Biameter blades (mm) |
Blades rotational speed (rpm) |
Motor rotational speed (rpm) |
Air flow (m3/h) |
Total pressure (pa) |
Noise |
Import power (W) |
Rated voltage (V) |
Height (mm) |
Width (mm) |
Thickness (mm) |
|
YD-620 |
500 | 1400 | 1400 | 17000 | 55 | ≤ 70 | 370 | 380 | 620 | 620 | 400 |
| YD-800 | 710 | 660 | 1400 | 20000 | 60 | ≤70 | 370 | 380 | 800 | 800 | 400 |
| YD-900 | 800 | 630 | 1400 | 22000 | 65 | ≤70 | 550 | 380 | 900 | 900 | 400 |
| YD-1000 | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 550 | 380 | 1000 | 1000 | 400 |
| YD-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
| YD-1200 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 1100 | 380 | 1220 | 1220 | 400 |
| YD-1380 | 1250 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
| YD-1530 | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
Company Information
Our main products comprise glass multi-span greenhouse, PC-sheet multi-span greenhouse, plastic-film
multi-span greenhouse and solar greenhouse etc.
Moreover, we also have greenhouse materials, they can match all the kinds of greenhouse.
Such as, skeleton system, aluminum-profile system, covering system, shading system, ventilation system,
cooling system, heating system, seedbed system & irrigation system, hydroponics System.
FAQ
1. How long is the delivey time?
According to your greenhouse size and system, the delivey time is usually 15-60 days.
2. Can you supply sample?
Small parts can be supplied, but you should pay the express cost.
3. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and layout after deposit. Drawing is no problem.
4. How to install greenhouse?
We prepare the materials and send the greenhouse materials to your city.
When the goods arrive at your port, you do the customs clearing.
If you think the it is hard to install the greenhouse, we can send engineers and workers to give some guide.
5. When installing, what cost should we pay?
Our engineer and workers visas and round trip tickets, their foods and accommodation , their communication.
